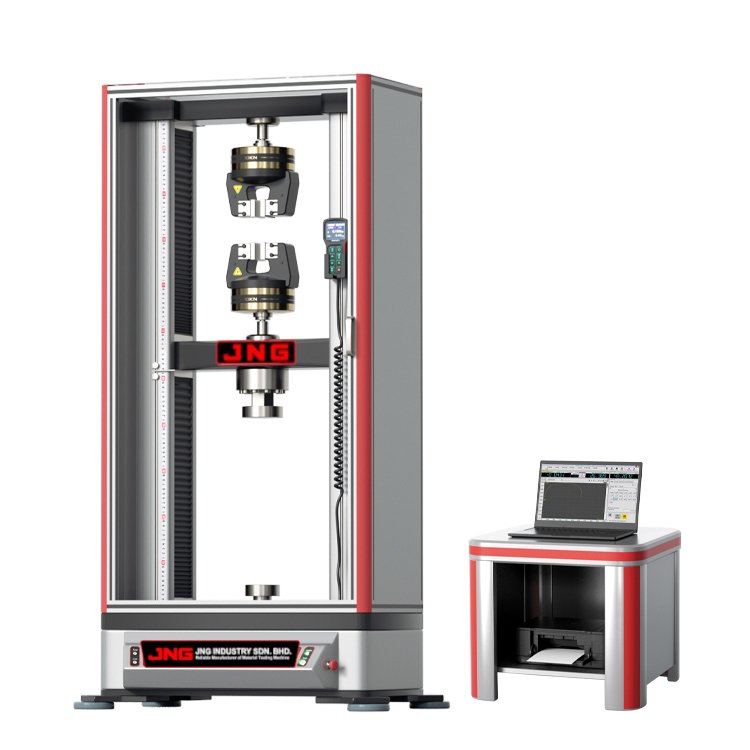

Tensile Compression Strength Tester For Fiberglass Pipe Tube
| Model | JG-50E | JG-100E |
| Max. Load(kN) | 50 | 100 |
| Load accuracy | Class 0.5 | Class 0.5 |
| Load range | 0.2%¡«100%F·S | 0.2%~100%F·S |
| Load resolution | 1/300000 | |
| Resolution of deformation | 0.04um | |
| Accuracy of displacement | Within±0.5%of indicating load | |
| Resolution of displacement | 0.01mm | |
| Test speed(mm/min) | 0.05-500 stepless arbitrary setting | |
| Speed accuracy | within ±1% / ±0.5% of set speed | |
| E-Tensile space(mm) | 770 | 650 |
| E-Compression space(mm) | 1000 | 1000 |
| D-Test width(mm) | 450 | 550 |
| F-Beam travel distance(mm) | 1100 | |
| Power supply | AC220V±10%£¬50Hz/60Hz (can be customized) | |
