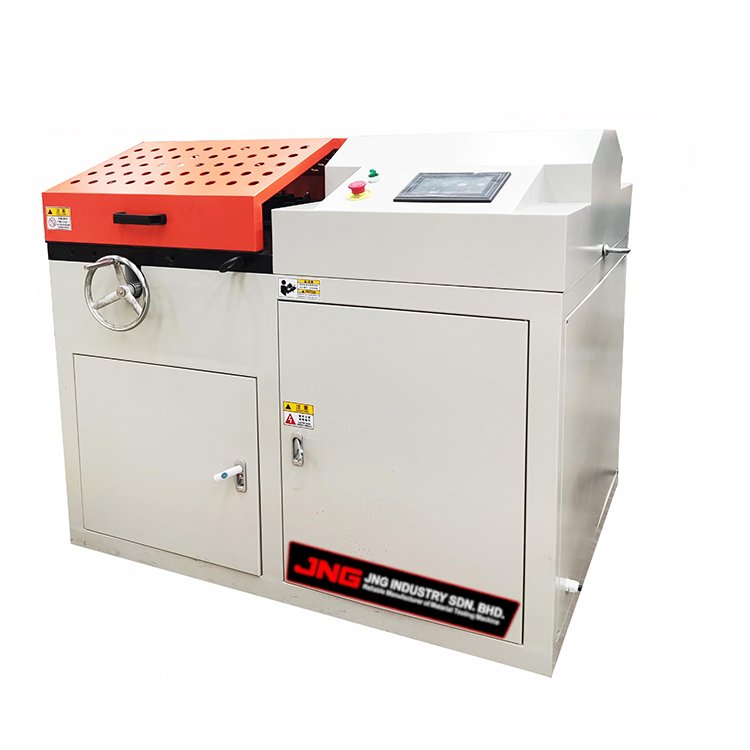

JG-BH50 Steel Bar Hydraulic Bending And Re-bending Testing Machine
| Model | JG-BH50M | JG-BH50A |
| Bending Diam Of Steel Bar(mm) | งถ6-งถ50 | |
| Max pushing force(KN) | 500 | |
| Cylinder max travel(mm) | 400 | |
| Forward Bending Angle | 0°กซ180° (the angle can be set freely in the range) | |
| Reverse Bending Angle |
0°กซ90° (the angle can be set freely in the range) |
|
| Maximum working pressure of system | 25 MPa | |
| Round specimen diameter(mm) | Φ6~Φ50 | |
| Flat specimen thickness(mm) | (6~40)x50 | |
| Mandrel diameter(mm) | Φ18~450 (can be customized) | |
| Distance between the rollers(mm) | 500 | 650 |
| Span rollers adjustment mode | Manual adjustment | Electric adjustment |
| Motor Power (kw ) | 1.5 | 3 |
| Voltage | 380V/50HZ/3 phase | |
