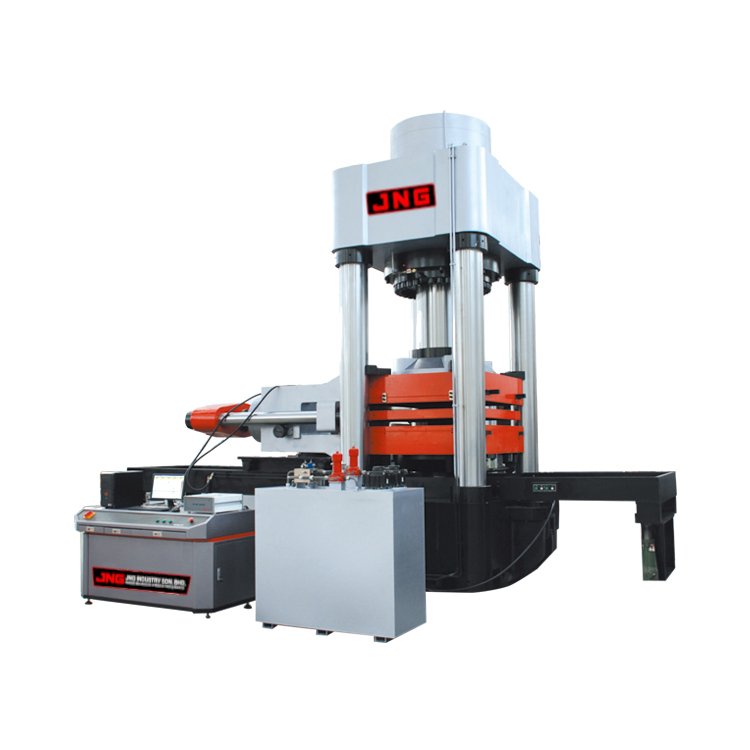

JGEW Elastomeric Bearing Testing Machine
Technical Specifications:
| Model | JGEW-5000 | JGEW-10000 | JGEW-20000 | JGEW-30000 |
| Test Force Range(KN) | 20-5000 | 40-10000 | 80-20000 | 120-30000 |
| Test Force Accuracy (%) | Indication Value±1 | |||
| Horizontal shear force(KN) | 1000 | 2000 | 4000 | 6000 |
| Horizontal Piston Stroke(mm) | 180 | 250 | 250 | 300 |
| Coner Push Force(KN) | 300 | 600 | 1000 | 1000 |
| Upright Deformation Measurement range(mm) | 0-10(Resolution0.001mm) |
0-20 (Resolution 0.001mm) |
||
| Radial Deformation Measurement range(mm) | 0-10(Resolution0.001mm) |
0-20 (Resolution 0.001mm) |
||
| Horizontal shearing Measurement range(mm) | 0-150(Resolution0.001mm) |
0-200 (Resolution 0.001mm) |
||
| Dimensions(cm) | 510*120*390 | 557.5*186*366 | 860*230*530 | 1052*312*580 |
| Power | 10 .AC380V±10% | 20 .AC380V±10% | 10 .AC380V±10% | 25.AC380V±10% |
| Gross Weight(kg) | 15000 | 35000 | 90000 | 120000 |
