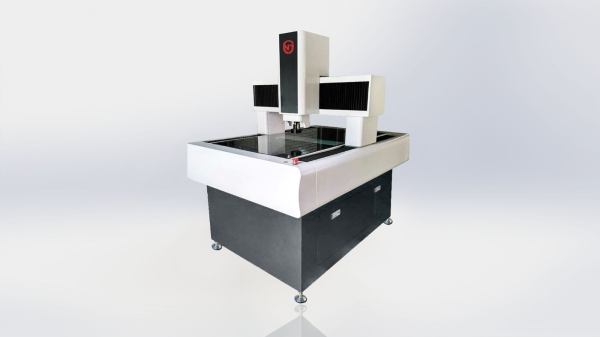

JG-502 CNC Video Measuring Machine
Equipment Usage:
Video measuring machine is mainly used for precision measurements of various parts of geometry and measurement accuracy to reach micron levels. Suitable for metal, plastic, mould, watches PCB and other industries. For accurate measurement with the measurement software, various geometry parts including lines, triangles, rectangles, circles, ellipses and other geometrical shapes and sizes. Other various parts of the geometric tolerance can be measured including straightness, parallelism, perpendicularity, roundness, art, tilt, and position degree.
Features Of Machine:
Technical Specifications:
Video measuring machine is mainly used for precision measurements of various parts of geometry and measurement accuracy to reach micron levels. Suitable for metal, plastic, mould, watches PCB and other industries. For accurate measurement with the measurement software, various geometry parts including lines, triangles, rectangles, circles, ellipses and other geometrical shapes and sizes. Other various parts of the geometric tolerance can be measured including straightness, parallelism, perpendicularity, roundness, art, tilt, and position degree.
Features Of Machine:
- Solid and rugged structures of machine base and column, made by high grade granite.
- Part-program capability for repeating parts.
- Joystick for axes and speed control with emergency button.
- Fully automatic inspection after first time programming for all X, Y, Z axes, including Light intensity control.
- Easiest and most user friendly and powerful Advance software Rational Vue 2D (USA), complete with powerful algorithms for most calculations.
- SPC function.
Technical Specifications:
| Model | JG-502 |
| Axes resolution | 0.001mm |
| Lens magnification | 0.7X to 4.5X Motorized Zoom (6x) |
| Screen magnification | 20X to 128X |
| Standard sensor | High resolution ½ CCD camera (Japanese Brand) |
| Len | High precision 6x zoom Len |
| Profile Illumination | LED |
| Surface Illumination | 8 quadrant LED ring-light |
| Drive | X/Y/Z Servo motor for 3 axes (Panasonic) |
| Overall dimensions | 1690 x 1162 x 1620 (mm) |
| Machine weight | 860Kg |
Computer: Included as per manufacturer specification with window 7 Pro licence and 23” LED monitor (exclusive of Microsoft Office Software)
