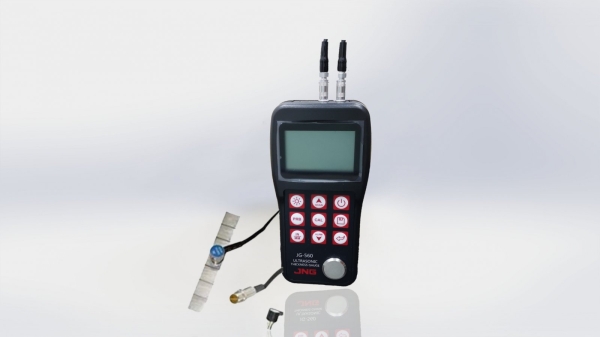

JG-560 Ultrasonic Thickness Gauge
JG-560 Ultrasonic Thickness Gauge Thickness Gauge Metrology Equipments Malaysia, Negeri Sembilan (NS), Seremban Supplier, Suppliers, Supply, Supplies | JNG Industry Sdn Bhd
Features and Application:
  • Capable of performing measurements on a wide range of material, including metals, plastic, ceramic, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
  • Transducer models are available for special application, including for coarse grain material and high temperature applications.
  • Two-Point Calibration function.
  • Two work modes: Single point mode and Scan mode.
  • Coupling status indicator showing the coupling status.
  • Optional software to process the memory data on the PC.
  • Optional thermal mini-printer to print the measured data via RS232 port.


Technical Specifications:
  • Display: 4.5 digits LCD with EL backlight.
  • Measuring Range: 0.75 ~ 300mm (in Steel).
  • Sound Velocity Range: 1000 ~ 9999 m/s.
  • JG560: 0.1/0.01mm
  • Accuracy: ± (0.5 Thickness +0.04)mm, depends on materials and conditions
  • Units: Metric/Imperial unit selectable.
  • Four measurements readings per second for single point measurement, and ten per second for Scan Mode.
  • Memory for up to 20 files (up to99 values for each file) of stored values.
  • Power Source: Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).
  • Communication: RS232 serial port.
  • Outline dimensions: 150 x 74 x 32mm.
  • Weight: 245g
