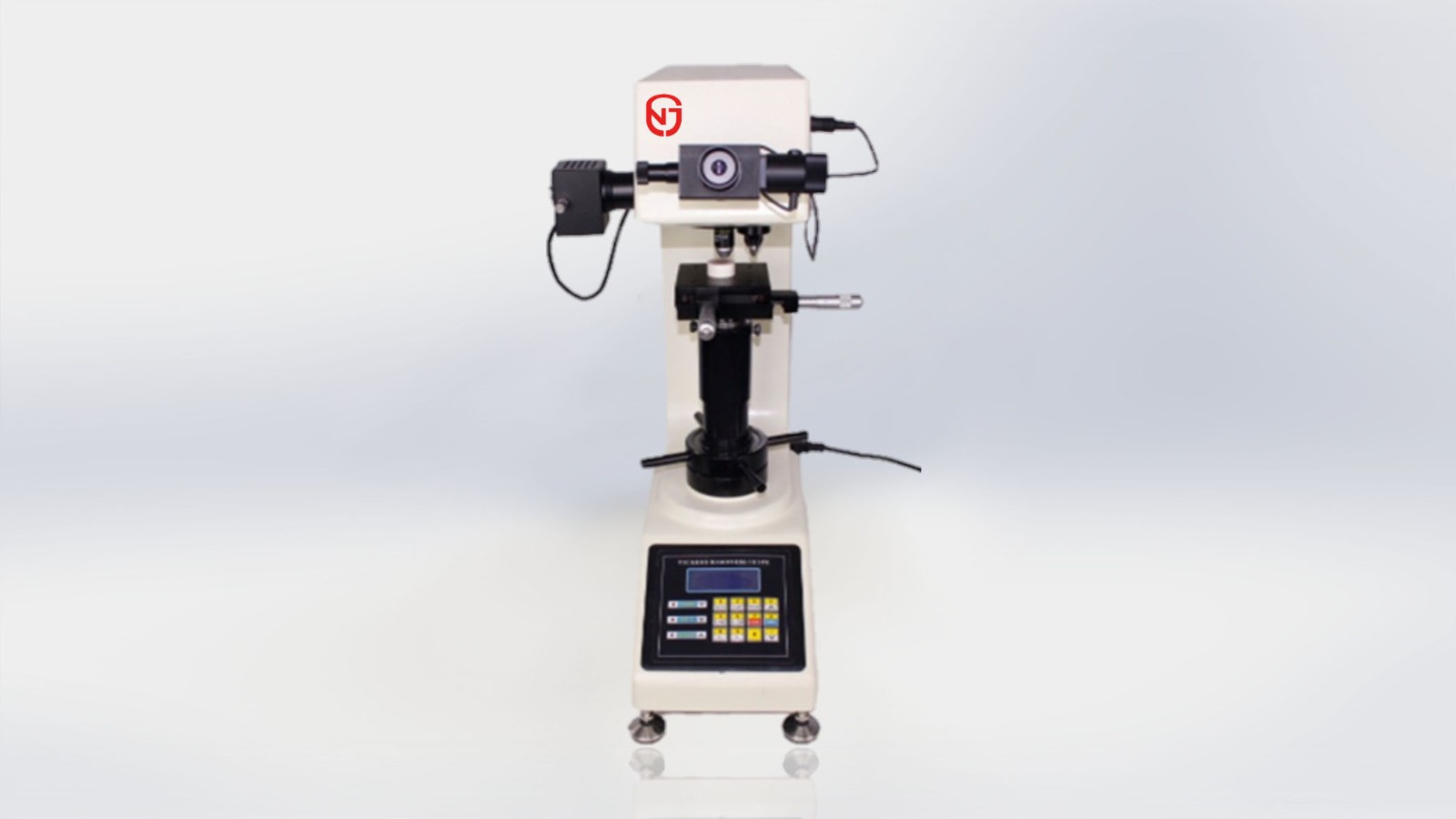

JG-126A Digital Display Vickers Hardness Tester
Download Files
JG-126A50_New_Catalogue_Digital_Display_Vickers_Hardness_Tester_(Auto_Turret).pdf (726.69 KB)
JG-126A10_Digital_Display_Vickers_Hardness_Tester_(Auto_Turret).pdf (62.22 KB)
JG-126A50_New_Catalogue_Digital_Display_Vickers_Hardness_Tester_(Auto_Turret).pdf (726.69 KB) JG-126A10_Digital_Display_Vickers_Hardness_Tester_(Auto_Turret).pdf (62.22 KB)
Equipment Usage:
Features:
Technical Specifications:
- Suitable to test Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.
Features:
- Frictionless loading shaft, high precision testing force.
- Automatic testing process, no human operating error.
- Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92.
- The instrument adopts closed-loop loading control system.
Technical Specifications:
| Model | JG-126A10 | JG-126A50 |
| Measuring range | 5HV ~ 3000HV | |
| Test force | 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07N (0.3, 0.5, 1, 2, 2.5, 3, 5, 10Kgf) |
4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 294.2, 490.3N (0.5, 1, 2, 2.5, 3, 5, 10, 20, 30, 50Kgf) |
| Hardness scale | HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10 | HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30, HV50 |
| Testing force application method | Automatic loading and unloading | |
| Lens/indenters with | Auto turret | |
| Dwell time of the test force | 0 ~60S (5 second as a unit with optional key-in) | |
| Reading microscope | 10X | |
| Objectives | 10X (Observing), 40X (Measuring) | 10X (Observing), 20X (Measuring) |
| Magnifications of the measuring system | 100X, 400X |
100X, 200X
|
| Max. Height of test piece | 170mm | |
| Depth of throat | 130mm | |
| Power supply | 220V AC 110V AC, 50 or 60Hz | |
| Dimensions | 530 x 280 x 630mm | |
| Weight (approx…) | 35Kg | |
