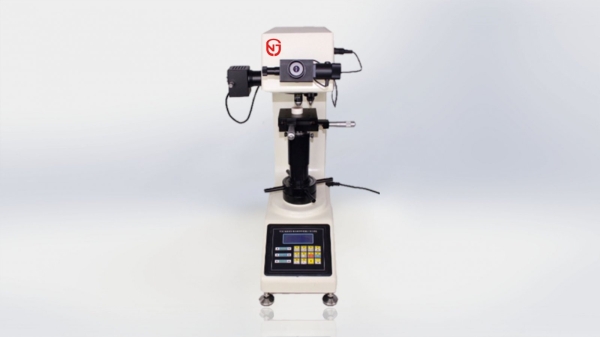

JG-126H Digital Display Vickers Hardness Tester
JG-126H Digital Display Vickers Hardness Tester Vickers Hardness Tester Hardness Tester Malaysia, Negeri Sembilan (NS), Seremban Supplier, Suppliers, Supply, Supplies | JNG Industry Sdn Bhd
Equipment Usage:
  • Suitable to test Vickers hardness of steel, non-ferrous metals, ceramics and treated  layers of metal surface, etc.


Features:
  • Frictionless loading shaft, high precision testing force.
  • Automatic testing process, no human operating error.
  • Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92.
  • The instrument adopts closed-loop loading control system.


Technical Specifications:

Model JG-126H5 JG-126H10 JG-126H30 JG-126H50
Measuring range 5HV ~ 3000HV
Test force 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03N
(0.3, 0.5, 1, 2, 2.5, 3, 5Kgf)
2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07N
(0.3, 0.5, 1, 2, 2.5, 3, 5, 10Kgf)
4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 294.2N
(0.5, 1, 2, 2.5, 3, 5, 10, 20, 30Kgf)
9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 294.2, 490.3N
(1, 2, 2.5, 3, 5, 10, 20, 30, 50Kgf)
Hardness scale HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5 HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10 HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30 HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30, HV50
Testing force application method Automatic loading and unloading
Lens/indenters with Hand turret
Dwell time of the test force 0 ~60S (5 second as a unit with optional key-in)
Reading microscope 10X
Objectives 20X (Observing),
40X (Measuring)
10X (Observing),
40X (Measuring)
10X (Observing), 20X (Measuring)

Magnifications of the measuring system 200X, 400X 100X, 400X
100X, 200X

Max. Height of test piece 170mm
Depth of throat 130mm
Power supply 220V AC 110V AC, 50 or 60Hz
Dimensions 530 x 280 x 630mm
Weight (approx…) 35Kg
