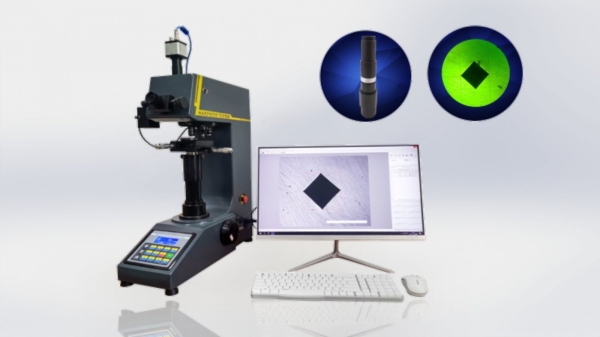

JG-125M Vickers Hardness Tester With Measuring System
Download Files
JG-125M50_Catalogue_Vickers_Hardness_Tester_with_Measuring_System_(Auto_Turret).pdf (307.96 KB)
JG-125M30_Catalogue_Vickers_Hardness_Tester_with_Measuring_System_(Auto_Turret).pdf (308.29 KB)
JG-125M10_Catalogue_Vickers_Hardness_Tester_with_Measuring_System_(Auto_Turret).pdf (308.81 KB)
JG-125M5_Catalogue_Vickers_Hardness_Tester_with_Measuring_System_(Auto_Turret).pdf (308.72 KB)
JG-125M50_Catalogue_Vickers_Hardness_Tester_with_Measuring_System_(Auto_Turret).pdf (307.96 KB) JG-125M30_Catalogue_Vickers_Hardness_Tester_with_Measuring_System_(Auto_Turret).pdf (308.29 KB) JG-125M10_Catalogue_Vickers_Hardness_Tester_with_Measuring_System_(Auto_Turret).pdf (308.81 KB) JG-125M5_Catalogue_Vickers_Hardness_Tester_with_Measuring_System_(Auto_Turret).pdf (308.72 KB)
Equipment Usage:
Features:
Technical Specifications:
Description Of CCD System:
- Suitable to test Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.
Features:
- Frictionless loading shaft, high precision testing force.
- Automatic testing process, no human operating error.
- Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92.
- The instrument adopts closed-loop loading control system.
Technical Specifications:
| Model | JG-125M5 | JG-125M10 | JG-125M30 | JG-125M50 |
| Measuring range | 5HV ~ 3000HV | |||
| Test force |
2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03N (0.3, 0.5, 1, 2, 2.5, 3, 5Kgf) |
2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07N (0.3, 0.5, 1, 2, 2.5, 3, 5, 10Kgf) |
4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 294.2N (0.5, 1, 2, 2.5, 3, 5, 10, 20, 30Kgf) |
9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 294.2, 490.3N (1, 2, 2.5, 3, 5, 10, 20, 30, 50Kgf) |
| Hardness scale | HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5 | HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10 | HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30 | HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30, HV50 |
| Loading method | Automatic loading and unloading | |||
| Lens/indenters with | Auto turret | |||
| Reading microscope | 10x | |||
| Objectives | 20x, 40x | 10x, 40x | 10x, 20x | |
| Magnifications of the measuring system | 200x (observing), 400x (measuring) | 100x (observing), 400x (measuring) | 100x (observing), 200x (measuring) | |
| Measuring system | Manual/Automatic measuring, Computer can control the loading, dwell, unloading of test forces; light, change of test forces and so on. | |||
| Max. Height of test piece | 170mm | |||
| Depth of throat | 130mm | |||
| Stage | 100 x 100mm | / | ||
| Travel of stage | 25 x 25mm | / | ||
| Min. Scale value of the optical micrometer |
0.5µm |
|||
| Dwell time | 0 ~ 60S | |||
| Power supply | 220V AC or 110V AC, 50 or 60Hz | |||
| Dimensions | 530 x 280 x 630mm | |||
| Package dimension | 620 x 450 x 740mm | |||
| Net weight | 35kg | |||
| Gross weight | 47Kg | |||
Description Of CCD System:
- The CCD image processing system can finish the process automatically: measurement of the diagonal length of indentation, hardness value display, testing data and image saving, etc.
- It is available to preset the upper and lower limit of hardness value, the testing result can be inspected whether it is qualified automatically.
- Process hardness testing on 20 test points at one time (preset the distance between test points at will), and save the testing results as one group.
- Converting between various hardness scale and tensile strength.
- Inquire the saved data and image at any time.
- Customer may adjust the accuracy of the measured hardness value at any time according to the calibration of Hardness Tester.
- The measured HV value can be converted to the other hardness scale such as HB, HR etc.
- System provides a rich set of image processing tools for advanced users, the standard tools in the system include adjusting Brightness, Contrast, Gamma, and Histogram Level, and the Sharpen, Smooth, Invert, and Convert to Grey functions. On grey scale images, system provides various advanced tools in filtering and finding edges, as well as some standard tools in morphological operations such as Open, Close, Dilation, Erosion, Skeletinize, and Flood Fill, to name a few.
- System provides the tools to draw and measure common geometric shapes such as lines, angles 4-point angles (for missing or hidden vertexes), rectangles, circles, ellipses, and polygon. Note that the measurement assumes the system is calibrated.
- System allows user manage multiple images in an album which can be saved to and opened from an album file. The image can have the standard geometric shapes and the documents as entered by user as described above.
- On an image, system provides a document editor to enter/edit documents with contents either in simple plain test format or in advanced HTML format with objects including tabs, list, and images.
- System can print the image with user specified magnification if it is calibrated.
