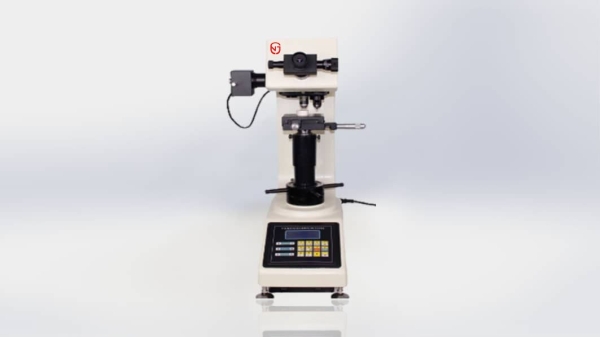

JG-125H Vickers Hardness Tester
Download Files
JG-125H50_Catalogue_Vickers_Hardness_Tester_(Hand_Turret).pdf (601.52 KB)
JG-125H30_Catalogue_Vickers_Hardness_Tester_(Hand_Turret).pdf (601.73 KB)
JG-125H10_Catalogue_Vickers_Hardness_Tester_(Hand_Turret).pdf (601.48 KB)
JG-125H5_Catalogue_Vickers_Hardness_Tester_(Hand_Turret).pdf (601.28 KB)
JG-125H50_Catalogue_Vickers_Hardness_Tester_(Hand_Turret).pdf (601.52 KB) JG-125H30_Catalogue_Vickers_Hardness_Tester_(Hand_Turret).pdf (601.73 KB) JG-125H10_Catalogue_Vickers_Hardness_Tester_(Hand_Turret).pdf (601.48 KB) JG-125H5_Catalogue_Vickers_Hardness_Tester_(Hand_Turret).pdf (601.28 KB)
Equipment Usage:
Features:
Technical Specifications:
- Suitable to test Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.
Features:
- Frictionless loading shaft, high precision testing force.
- Automatic testing process, no human operating error.
- Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92.
- The instrument adopts closed-loop loading control system.
Technical Specifications:
| Model | JG-125H5 | JG-125H10 | JG-125H30 | JG-125H50 |
| Measuring range | 5HV ~ 3000HV | |||
| Test force |
2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03N
(0.3, 0.5, 1, 2, 2.5, 3, 5Kgf)
|
2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07N
(0.3, 0.5, 1, 2, 2.5, 3, 5, 10Kgf)
|
4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 294.2N
(0.5, 1, 2, 2.5, 3, 5, 10, 20, 30Kgf)
|
9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 294.2, 490.3N
(1, 2, 2.5, 3, 5, 10, 20, 30, 50Kgf)
|
| Hardness scale | HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5 | HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10 | HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30 | HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30, HV50 |
| Lens/indenters with | Hand turret | |||
| Reading microscope | 10X | |||
| Objectives | 20X (Observing), 40X (Measuring) | 10X (Observing), 40X (Measuring) | 10X (Observing), 20X (Measuring) | 10X (Observing), 20X (Measuring) |
| Magnifications of the measuring system | 200X, 400X | 100X, 400X | 100X, 200X | 100X, 200X |
| Max. Height of test piece | 170mm | |||
| Depth of throat | 130mm | |||
| Power supply | 220V AC 110V AC, 50 or 60Hz | |||
| Dimensions | 530 x 280 x 630mm | |||
| Weight (approx…) | 35Kg | |||
