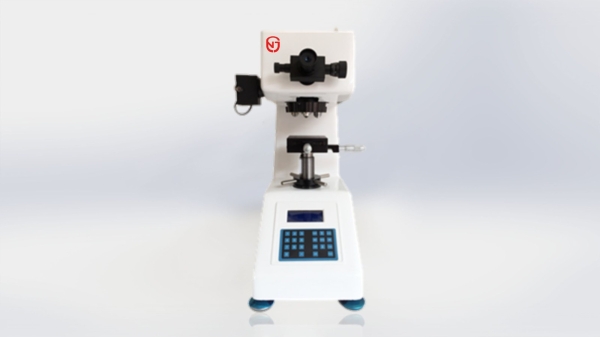

JG-116H Micro Vickers Hardness Tester
Equipment Usage:
Features:
Technical Specifications:
- Suitable for ferrous metal, non-ferrous metals, IC thin sections, coating, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Features:
- Economic type, cost-effective, reliable, easy operation and intuitive;
- HV/HK scale, light, and dwell can be set through operation panel;
- Put in the diagonal length and hardness value can be shown on LCD screen; no need to refer to sheet;
- Hardness value, measuring method, test forces value, dwell time, number of measurement can be shown on LCD screen;
- In put halogen lamp with long working life;
Technical Specifications:
| Model | JG-116H |
| Testing range | 1HV ~ 2967HV |
| Test force |
0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N (10, 25, 50, 100, 200, 300, 500, 1000gf) |
| Max. height of test specimen | 90mm |
| Depth of throat | 90mm |
| Lens/indenters with | Hand turret |
| Carriage control | Automatic (Loading / Holding-up of the load / unloading) |
| Reading microscope | 10X |
| Objectives | 10x, 40x |
| Total amplification | 100x, 400x |
| Dwell time of the test force | 5 ~ 60s |
| Min. graduation value of the testing drum wheel | 0.25µm |
| Dimension of the XY table | 100 x 100mm |
| Travel of the XY table | 25 x 25mm |
| Light source / Power supply | 220V, 60/50Hz |
| Dimensions | 490 x 205 x 530mm |
| Package dimension | 550 x 370 x 800mm |
| Net weight / Gross weight | 30kg / 45kg |
