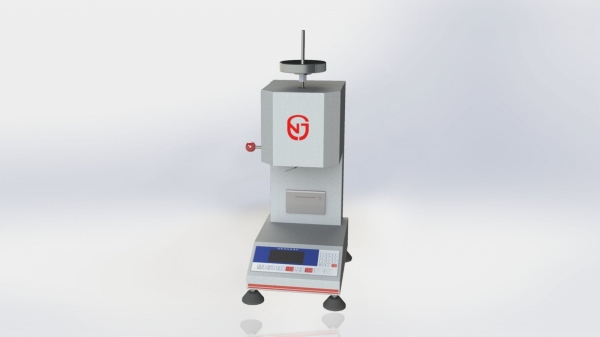

JG-5005 Melt Flow Indexer
JG-5005 Melt Flow Indexer Plastic Testing Machine Plastic Testing  Malaysia, Negeri Sembilan (NS), Seremban Supplier, Suppliers, Supply, Supplies | JNG Industry Sdn Bhd
Download Files
JG-5005_Catalogue_Melt_Flow_Indexer.pdf (60.02 KB)
Equipment Usage:
  • Mainly suitable for testing thermoplastic melt mass flow rate and melt volume flow rate.

Conform To The Standards:
  • The JJG 878-1994 'the melt flow indexer'
  • JB/T 5456-2005 'melt flow rate instrument technical conditions'
  • GB/T 3682-2000 'thermoplastics melt mass flow rate and melt volume flow rate measurement'
  • ISO 1133: 1997 'Plastic - Determinaton of the melt mass - flow rate (MFR) and the melt volume - flow rate (MVR) of thermoplastics'
  • ASTM D1238-01 'Standard Test Method for Melt Flow Rates of Thermoplastics by Extrusion Plastometer

  • The main frame is processed, easy installation and maintenance, when happen after - sales customer can change accessories.
  • The cylinder and the piston rod and other key parts adopt high temperature alloy material, low expansion coefficient, surface heat treatment, and the special seldom happened in the case of high temperature deformation, and high hardness, not easy to wear and tear, can use for a long time.
  • Using non-contact precision light lever to measure displacement, lever before and light even mass balance, no additional device, such as the sping will not impact other measuring displacement, effectively prevent the test error.

Technical Specifications:

Model JG-5005
Temperature Control Scope: 100 ~ 450ºC
Temperature error: ±0.5ºC
Volatility: ±0.5ºC
4h drift: ≤0.5ºC,
Temperature distribution: ≤0.5ºC
Resolution: 0.1ºC,
Measurement Mode Quality method
Control Mode Single chip computer color LCD screen display
Loading And Software                                    Manual loading not even to PC
After feeding material barrel temperature recovery time   ≤ 4 min
Timer Scope: 0 – 6000S; Resolution: 1S
Cutting device Automatic timing cut (2 ~ 1000s), any cutting.
With some cutting and manual cutting function
Mouth die inner diameter งถ2.095 ± 0.005mm
Cylinder Bore งถ9.550 ± 0.025mm
Load Accuracy: ≤±0.5%
National Standard Samples (PE) Test                                   Repeat accuracy: ≤ 2%
Accuracy ≤5%
Velocity Range 0.1 – 200g / 10min
Overall Dimension 300 x 500 x 600 (mm)
Weight (approx…) 50Kg
Power supply AC single phase 220V / 50Hz ±10% 3A
